OBD II Connector

[Ishiwgao]

Hey bros, need a bit of help here.



as above, anyone made use of the OBD II connectors in their car before? My ride is a 2010 Honda City, and I'm trying to find out which model is the OBD II connector and whether it is OBD II compliant. I tried looking around the door, under the hood and the manual, but cannot find any info on it with regards to specifically the Honda City. Anyone can help?



oh, and does it void warranty?

Edited January 30, 2011 by Ishiwgao

[Caravan]

The connector for OBD2 is standard, the pin layout may not be that's all. Try looking underneath the steering wheel area. You can easily learn about OBD on the net.

[Xyberz9]

Yes... as stated by bro caravan... It is usually below the steering area... Where u will need to place ur head down near the pedals and look upwards to see the OBD connection point...



Scangauge is one of the tool that can be used....

[Ishiwgao]

yes I have found my connector already. However I wanna use more than scangauge. I'm gonna have a CarPC in the car, so I'm planning to get the OBD to USB kinda of cable (check out the link for an example). so yes as bro caravan said I need to know the pin layout as what I get shipped from US may not be the same as what the Japs are using.

[Ishiwgao]

just to update, i tried asking KM for more details on the connector, but they replied "i don't know". My guess is they dont want me to touch it?

[Latour]



J1850 VPW--The connector should have metallic contacts in pins 2, 4, 5, and 16, but not 10.

ISO 9141-2--The connector should have metallic contacts in pins 4, 5, 7, 15, and 16.

J1850 PWM--The connector should have metallic contacts in pins 2, 4, 5, 10, and 16





[Mok_]

Your car is OBD-II compliant.



The OBD-II to USB device can be purchased locally.



PM me if you wish to find out more.

[Antony]

yes, mine is beneath the steering wheel as well to be more in detail mine is on the left hand side

[Ishiwgao]

same, mine is left hand side too. still have yet to figure out what pins are in what hole, so can find out what head it is

[Ilmw]

My 2007 Honda Civic has:<br><br><div>



<div><p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">4<span class="Apple-tab-span" style="white-space:pre"> </span>GND<span class="Apple-tab-span" style="white-space:pre"> </span>BLK<span class="Apple-tab-span" style="white-space:pre"> </span>CHASSIS</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">5<span class="Apple-tab-span" style="white-space:pre"> </span>GND<span class="Apple-tab-span" style="white-space:pre"> </span>BLK<span class="Apple-tab-span" style="white-space:pre"> </span>SIGNAL</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">6<span class="Apple-tab-span" style="white-space:pre"> </span>CAN-H<span class="Apple-tab-span" style="white-space:pre"> </span>WHT<span class="Apple-tab-span" style="white-space:pre"> </span>ISO 15765 CAN 500kbps</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">7<span class="Apple-tab-span" style="white-space:pre"> </span>ISO-K<span class="Apple-tab-span" style="white-space:pre"> </span>LT-BLU<span class="Apple-tab-span" style="white-space:pre"> </span>ISO 9141-2 10.4kbaud</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">9<span class="Apple-tab-span" style="white-space:pre"> </span>SCS<span class="Apple-tab-span" style="white-space:pre"> </span>RED?<span class="Apple-tab-span" style="white-space:pre"> </span>SERVICE? (connect to ECM)</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">12<span class="Apple-tab-span" style="white-space:pre"> </span>ORN?<span class="Apple-tab-span" style="white-space:pre"> </span>(connect to ECM & SRS)</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">14<span class="Apple-tab-span" style="white-space:pre"> </span>CAN-L<span class="Apple-tab-span" style="white-space:pre"> </span>RED<span class="Apple-tab-span" style="white-space:pre"> </span>ISO 15765 CAN 500kbps</p>

<p style="margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica">16<span class="Apple-tab-span" style="white-space:pre"> </span>BATT<span class="Apple-tab-span" style="white-space:pre"> </span>WHT<span class="Apple-tab-span" style="white-space:pre"> </span>12V</p></div><div><br></div></div><div>Your car shouldn't be too far off. Important thing is Honda is (at least on my car) 500kbps F-CAN ISO 15765 and 33.3kbps on B-CAN (not connected to above DLC). Read Wiki on all these terms.</div><div><br></div><div>Read http://www.canbushack.com/blog/ for fun too.</div><div><br></div>

[Ilmw]

My 2007 Honda Civic has:



4 GND BLK CHASSIS

5 GND BLK SIGNAL

6 CAN-H WHT ISO 15765 CAN 500kbps

7 ISO-K LT-BLU ISO 9141-2 10.4kbaud

9 SCS RED? SERVICE? (connect to ECM)

12 ORN? (connect to ECM & SRS)

14 CAN-L RED ISO 15765 CAN 500kbps

16 BATT WHT 12V



Your car shouldn't be too far off. Important thing is Honda is (at least on my car) 500kbps F-CAN ISO 15765 and 33.3kbps on B-CAN (not connected to above DLC). Read Wiki on all these terms.



Read http://www.canbushack.com/blog/ for fun too.

[Ishiwgao]

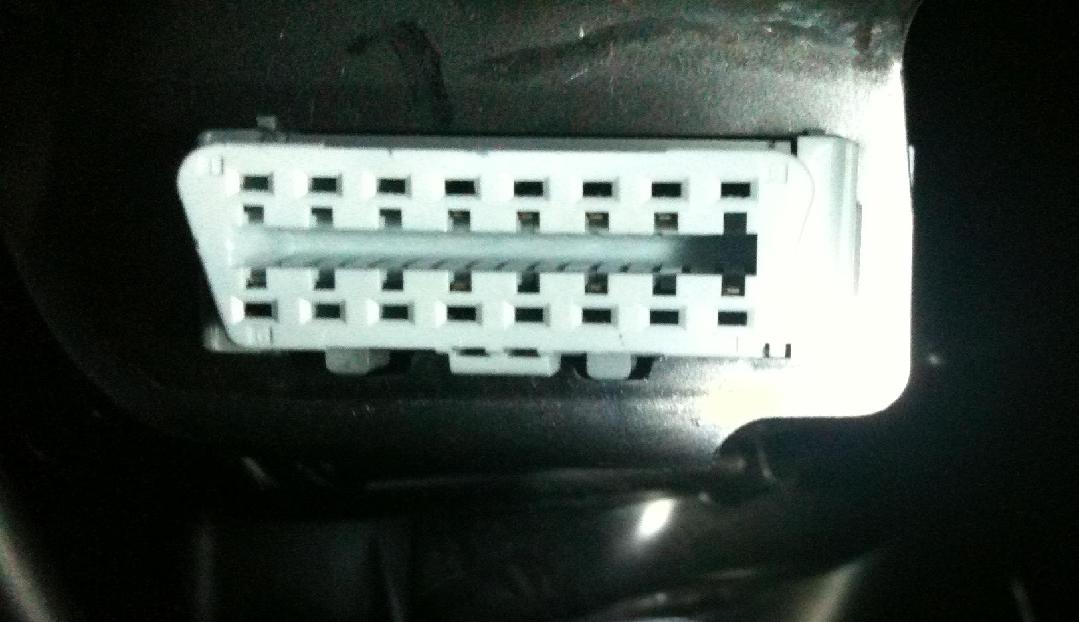

Thanks bro llmw for so much info. Here's my head, same as what you said. Pins 4,5,6,7,9,12,14,16 have metallic connectors. I believe this is the JOBD version? I tried looking around wiki but still can't find any more info than what you've provided, so I am going to assume that the info you've given is the same for me.
